YG032E Pneumatic Controlled Automatic Hydraulic Diaphram Bursting Tester

Product name : Automatic Hydraulic Diaphram Bursting Tester

Distension measurement range : Up to 75 ± 0.02 mm

Measuring areas : 7.3cm² (Ø 30.5mm),50cm² (Ø 79.8mm)

Unit of measurement : kPa - kgf/cm² - mmHg - lb/in² - atm

Hydraulic oil : Glycerine 85%, distilled water 15%

Safety sensor : Over scale auto-stop

Brand Name : ZL

Model Number : ZL-5031

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 40 sets / month

Delivery Time : 4-7 work days

Packaging Details : Automatic Hydraulic Diaphram Bursting Tester is packaged within wooden case.

Contact Now

YG032E Pneumatic Controlled Automatic Hydraulic Diaphragm Bursting Tester

Product Overview

The YG032E Automatic Hydraulic Diaphragm Bursting Tester is specifically engineered for performing bursting strength testing of knitted fabrics using pneumatic control. This advanced instrument is also suitable for testing leather, paper, cardboard, and various other materials.

Applications

Designed to determine the bursting strength and distension at burst of woven and knitted fabrics, technical textiles, non-wovens, bonded fabrics, plastics, leather (both artificial and natural), and cardboard.

Testing Standards Compliance

ASTM D 3786 - Standard Test Method for Hydraulic Bursting Strength of Textile Fabrics
BS 4768 - Determination of Bursting Strength and Bursting Distension
ISO 13938-1 - Textiles Bursting Properties of Fabrics, Hydraulic Method
ISO 2758 - Paper Determination of Bursting Strength
ISO 2759 - Board Determination of Bursting Strength
ISO 3303 - Rubber or Plastics-coated Fabrics Determination of Bursting Strength
WSP 030.1.R3(12), BS 3424(PT6), ERT 80-4-20, EN 12332-2, IWS TM 29, ASTM D751, JIS L-1018

Testing Procedure

The burst tester measures fabric strength by applying increasing hydrostatic pressure to a circular specimen area via an elastic diaphragm. The specimen is securely clamped, and pressure increases until failure occurs within 20 ± 3 seconds. The measurement is independent of cutting direction since failure naturally occurs in the least resistance direction.

Procedure Steps:

Clamp fabric sample over rubber diaphragm
Increase fluid pressure until specimen bursts within 20 ± 3 seconds (P1)
Record diaphragm height (extension)
Conduct additional test without specimen
Record pressure required (P2)
Calculate actual bursting strength: P1 - P2

Key Features

Touch screen panel for simple and intuitive operation
Pneumatic operated clamping ensures repeatable test results
Automatic test cycle with breaking detection and auto-return to initial position
Precision engineered components for excellent performance
Safety protection with illuminated viewing area
Multiple test methods: Constant Rate, Constant Pressure, Constant Distension, Timing
Maximum distension height: 75mm
Cross mode for determining true bursting strength value
200cc glycerol deposit store for easy air drainage
PC and printer connectivity
Supplied with calibration and inspection certificates

Technical Specifications

Application Areas	Textiles: Knitted and woven apparel, Technical textiles Nonwovens: Wet wipes, surgical gowns/masks Plastics: Food packaging, bin liners, sacks Medical: Organ patches, hernia patches, wound dressings Paper: Kitchen paper, toilet tissue, paper products
Pressure Range	YG032E-2: 2000kPa, L/C: 1kPa YG032E-10: 10000kPa, L/C: 3kPa
Distension Range	Up to 75 ± 0.02 mm
Measuring Areas	Standard: 7.3cm² (Ø 30.5mm), 50cm² (Ø 79.8mm) Optional: 7.1cm², 7.55cm², 7.8cm², 10cm², 100cm²
Measurement Units	kPa, kgf/cm², mmHg, lb/in², atm
Test Methods	Constant Rate, Constant Pressure, Constant Distension, Timing
Hydraulic Flow Rate	20-600 mL/min (adjustable)
Hydraulic Oil	Glycerine 85%, distilled water 15%
Safety Features	Over scale auto-stop
Diaphragm Thickness	≤ 2 mm
Data Ports	RS232 for printer, 3-pin Mini-DIN for PC
Dimensions	550 × 450 × 700 mm
Power Supply	220V, 50Hz or 110V, 60Hz
Air Requirements	600-800 kPa
Weight	125 Kg

Standard Accessories

Item	Quantity
Main Unit	1
Test Kit (7.3cm² and 50cm²)	1 each
Synthetic Rubber Diaphragms (James Heal)	5
Diaphragm Unit Tightening Wrench	1
Air Pipe (for compressor connection)	1
Glycerol (500mL)	1
USB Software	1
Power Cord	1
User's Manual	1
Inspection & Conformance Certificate	1

Product Images

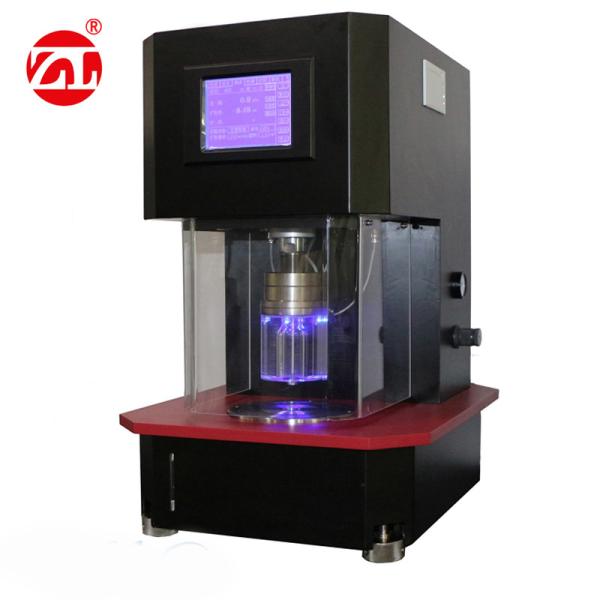

YG032E Pneumatic Controlled Automatic Hydraulic Diaphram Bursting Tester
